Container Types & Specifications

Select a container type below to explore internal dimensions, capacity, weight limits, and best-use characteristics.

Standard Containers

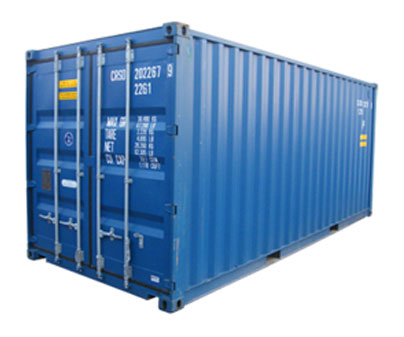

Standard Shipping Container
33.2 m³
20' Capacity
67.7 m³
40' Capacity
21,770 kg
20' Max Cargo
26,750 kg
40' Max Cargo

Standard Dry Containers

The most widely used container type in global shipping — suitable for virtually all general cargo, from electronics to clothing to packaged goods.

Specification Standard 20' Standard 40'
Inside Length 5,898 mm / 19'4" 12,032 mm / 39'5"
Inside Width 2,352 mm / 7'8" 2,352 mm / 7'8"
Inside Height 2,393 mm / 7'10" 2,393 mm / 7'10"
Door Width 2,343 mm / 7'8" 2,343 mm / 7'8"
Door Height 2,280 mm / 7'5" 2,280 mm / 7'5"
Capacity 33.2 m³ / 1,172 cu ft 67.7 m³ / 2,390 cu ft
Tare Weight 2,230 kg / 4,916 lbs 3,750 kg / 8,268 lbs
Max Cargo 21,770 kg / 47,994 lbs 26,750 kg / 58,973 lbs
Characteristics: Manufactured from either Aluminium or steel, they are suitable for most types of cargo / general cargo. Aluminium containers have a slightly larger payload than steel, and steel containers have a slightly larger internal cube.
Open Top Containers

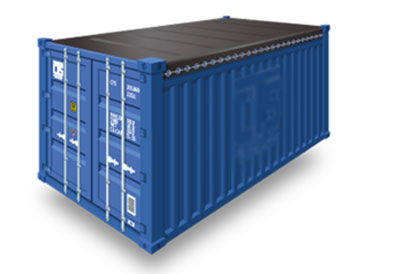

Open Top Container
32.5 m³
20' Capacity
66.7 m³
40' Capacity
21,640 kg
20' Max Cargo
26,530 kg
40' Max Cargo

Open Top Containers

Designed for bulky, tall, or crane-loaded cargo. The removable roof and doors make loading from above or the front exceptionally flexible.

Specification Open Top 20' Open Top 40'
Inside Length 5,888 mm / 19'3" 12,034 mm / 39'5"
Inside Width 2,345 mm / 7'8" 2,345 mm / 7'8"
Inside Height 2,350 mm / 7'8" 2,330 mm / 7'7"
Door Width 2,335 mm / 7'7" 2,335 mm / 7'7"
Door Height 2,193 mm / 7'2" 2,193 mm / 7'2"
Capacity 32.5 m³ / 1,148 cu ft 66.7 m³ / 2,355 cu ft
Tare Weight 2,360 kg / 5,203 lbs 3,970 kg / 8,752 lbs
Max Cargo 21,640 kg / 47,707 lbs 26,530 kg / 58,488 lbs
Characteristics: Open top containers allow cargo loading from the top. Suitable for bulky cargo such as machinery and heavy equipment. Includes a PVC tarpaulin cover and attachable bows for weather protection. Doors can also be removed for easier loading.
Flat Rack Containers

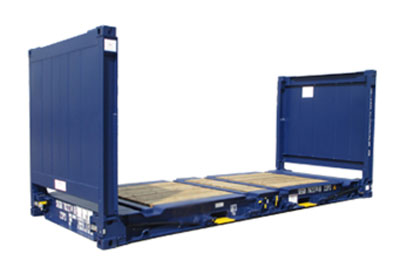

Flat Rack Container
28.2 m³
20' Capacity
58.9 m³
40' Capacity
27,300 kg
20' Max Cargo
40,000 kg
40' Max Cargo

Flat Rack Containers

Built for oversized and out-of-gauge cargo that cannot fit inside a standard enclosed container — ideal for industrial machinery, steel coils, and large pipes.

Specification Flat Rack 20' Flat Rack 40'
Platform Length 5,662 mm / 18'6" 11,784 mm / 38'7"
Inside Width 2,228 mm / 7'3" 2,126 mm / 6'11"
Wall Height 2,233 mm / 7'4" 1,981 mm / 6'5"
Door Width — —
Door Height — —
Capacity 28.2 m³ / 996 cu ft 58.9 m³ / 2,080 cu ft
Tare Weight 2,700 kg / 5,952 lbs 5,000 kg / 11,023 lbs
Max Cargo 27,300 kg / 60,190 lbs 40,000 kg / 88,184 lbs
Characteristics: Flat rack containers are designed for heavy or oversized cargo that requires loading from the top or sides. Common uses include machinery, pipes, steel structures, and industrial equipment that exceeds standard container dimensions.
Refrigerated Containers

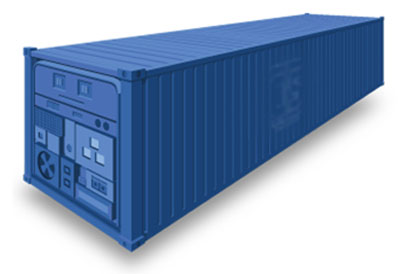

Refrigerated Container
26.1 m³
20' Capacity
67.3 m³
HC 40' Capacity
20,920 kg
20' Max Cargo
29,130 kg
HC Max Cargo

Refrigerated Containers

Temperature-controlled units for perishables, pharmaceuticals, and any cargo requiring consistent climate management throughout the entire journey.

Specification Reefer 20' Reefer 40' Reefer HC 40'
Inside Length 5,445 mm / 17'10" 11,577 mm / 37'11" 11,593 mm / 38'0"
Inside Width 2,294 mm / 7'6" 2,286 mm / 7'5" 2,286 mm / 7'5"
Inside Height 2,095 mm / 6'10" 2,100 mm / 6'10" 2,550 mm / 8'4"
Door Width 2,286 mm / 7'5" 2,286 mm / 7'5" 2,286 mm / 7'5"
Door Height 2,056 mm / 6'8" 2,060 mm / 6'8" 2,510 mm / 8'2"
Capacity 26.1 m³ / 922 cu ft 59.3 m³ / 2,094 cu ft 67.3 m³ / 2,377 cu ft
Tare Weight 3,080 kg / 6,790 lbs 4,800 kg / 10,582 lbs 4,870 kg / 10,736 lbs
Max Cargo 20,920 kg / 46,120 lbs 27,700 kg / 61,068 lbs 29,130 kg / 64,221 lbs
Characteristics: Refrigerated containers are recommended for temperature-sensitive cargo. Their bottom-air delivery system ensures goods remain in optimal condition during transportation. Supports a wide temperature range suitable for frozen and chilled goods.
High Cube Containers

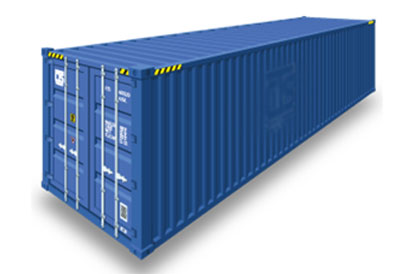

High Cube Container
76.3 m³
Capacity
2,698 mm
Inside Height
3,900 kg
Tare Weight
26,600 kg
Max Cargo

High Cube Containers

One foot taller than a standard 40' container, the High Cube is the preferred choice for light, voluminous cargo where maximising cubic capacity is the priority.

Specification High Cube 40'
Inside Length 12,032 mm / 39'5"
Inside Width 2,352 mm / 7'8"
Inside Height 2,698 mm / 8'10"
Door Width 2,343 mm / 7'8"
Door Height 2,585 mm / 8'5"
Capacity 76.3 m³ / 2,694 cu ft
Tare Weight 3,900 kg / 8,598 lbs
Max Cargo 26,600 kg / 58,642 lbs
Characteristics: High cube containers provide an additional foot of height compared to standard containers, making them ideal for light but voluminous cargo such as furniture, automotive parts, and bulky consumer goods where weight is not the limiting factor.
